Customised Wheelchairs
Reinforced Active Rigid Wheelchair

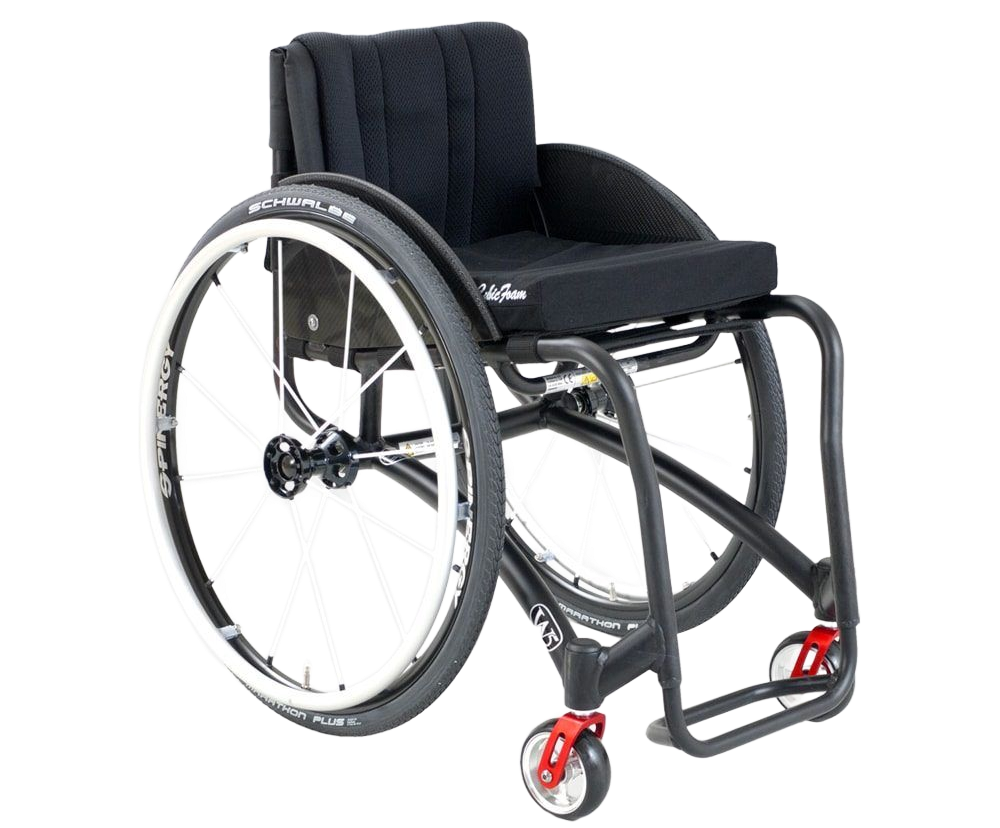

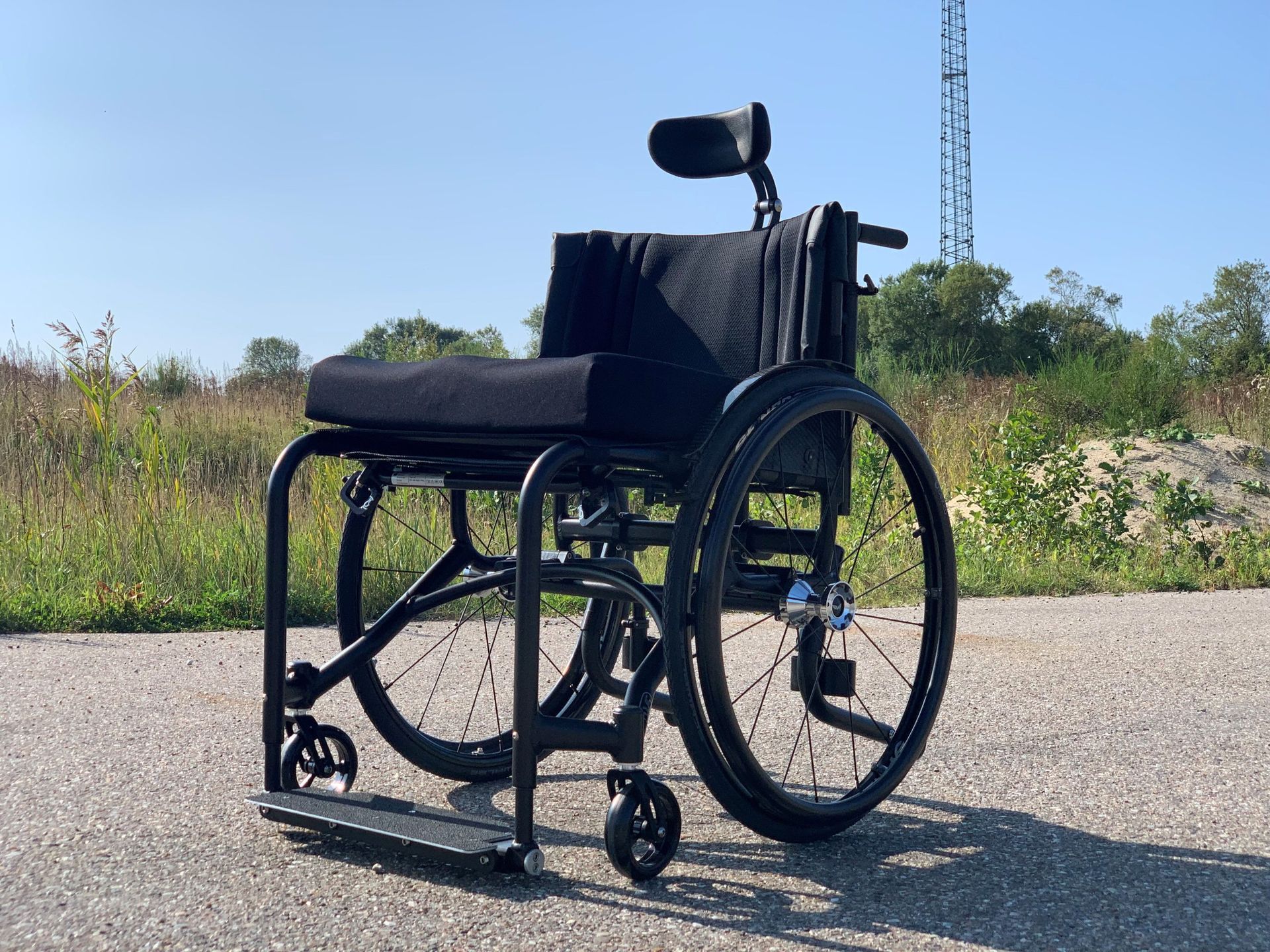

The Wolturnus W5 XXL is a heavy-duty version of the W5 rigid wheelchair, engineered for users with higher body weight, greater physical strength, or more demanding mobility needs. With an extra-reinforced frame and robust components, this chair delivers exceptional rigidity and propulsion efficiency while still maintaining manageable weight and manoeuvrability.
Designed using 7020 aluminium — one of the strongest weldable alloys available — the W5 XXL makes the most of your energy and offers reliable performance for everyday use, both indoors and outdoors. Its crash-tested construction also means it can be safely used in vehicles with the correct anchorage and head restraint.
Key Features & Benefits
Extra-Sturdy Reinforced Frame

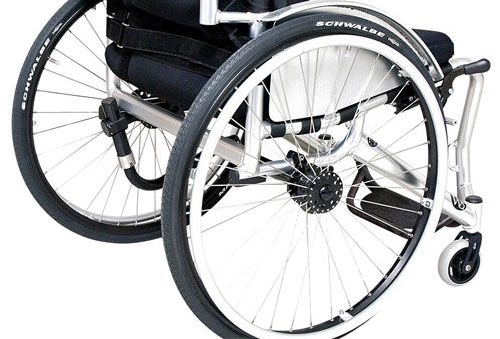

The W5 XXL’s box frame is built with 30 mm tubes (instead of standard 25 mm), increasing rigidity and strength for users with higher weight requirements, while still promoting efficient propulsion.
Optimal Strength-to-Weight Ratio
Although reinforced for strength, the W5 XXL is engineered to remain lightweight (from approx. 12 kg), making it easier to handle and manoeuvre during everyday use.
Adjustable Options Available
Choose from a fully welded set-up for maximum rigidity or an adjustable version that allows fine-tuning of balance point, backrest and rear axle positions to suit your needs.
Transport-Friendly Design
Features like detachable rear wheels, folding backrest and removable side panels combine to make transport and storage simpler, even with the XXL’s reinforced build.
Crash Tested for Safety
The W5 XXL meets safety standards for use with vehicle anchorage systems and appropriate restraints, offering peace of mind for travel.
Comfortable Seating Options
Optional ergonomic seat and ILSA backrest systems are available to enhance posture support and comfort for extended use.
Technical Features & Measurements
| Specification | Details |
|---|---|
| Propulsion Weight (from) | Approx. 12 kg |
| Maximum User Weight | Up to 250 kg |
| Seat Width Range | 480 mm – 660 mm (up to ~720 mm in some configurations) |
| Seat Depth Range | Approx. 390 mm – 550 mm |
| Seat Height Range | Approx. 300 mm – 500 mm |
| Backrest Height Range | Approx. 300 mm – 500 mm |
| Frame Material | Reinforced 7020 aluminium box frame |
| Frame Type | Rigid (fully welded or adjustable) |
| Crash Tested | Yes (suitable for adapted vehicles with anchorage & head restraint) |
| Transport / Storage | Folding backrest, detachable wheels & side panels |
| Adjustable Features | Balance point; backrest and rear axle position (adjustable model) |
Who Is the Wolturnus W5 XXL For?
The W5 XXL is ideal for active users who require a stronger, more robust wheelchair that still feels responsive and efficient. It’s especially suited to those with higher body weight or greater physical strength looking for a reliable chair with excellent energy transfer and daily usability.
Whether you need a chair that can handle challenging activities, support robust everyday performance, or travel safely in a vehicle, the W5 XXL delivers strength, stability and configurable comfort.
