Compact Folding, Fixed-Frame Performance
The Küschall Champion combines the portability of a folding wheelchair with the exceptional rigidity of a fixed frame, delivering outstanding driving performance in a compact, travel-friendly design. Built for active users who want performance without compromise, the Champion is the perfect companion for everyday life and adventure.
Thanks to its unique folding mechanism, the Champion packs down quickly and easily for transport. With the optional SK (Swiss Knife) folding system, the chair becomes even more compact — making travel, storage and handling effortless. Its lightweight, hydro-formed frame enhances strength and responsiveness, making the Champion ideal for people who lead an active, on-the-go lifestyle.
Key Features & Benefits

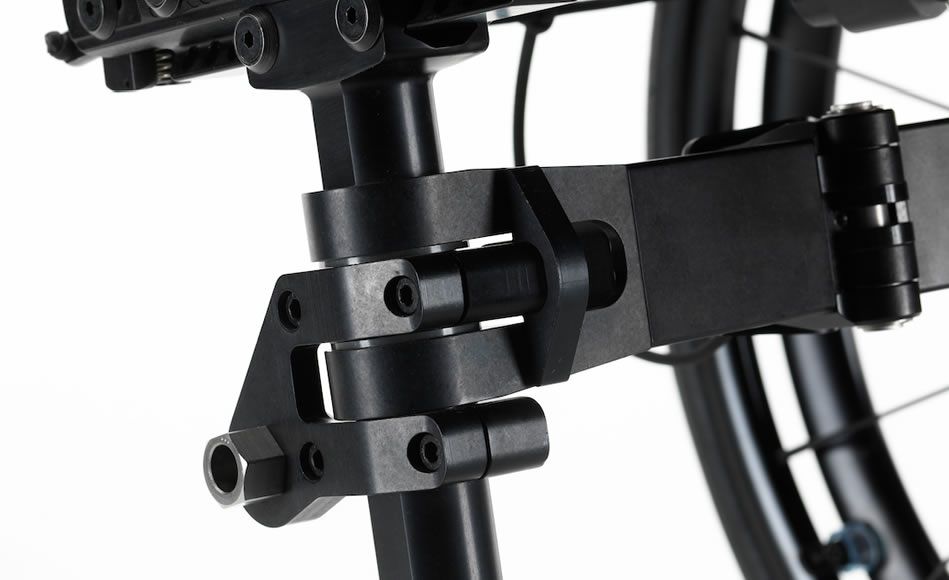

Hydro-Formed Front Frame
The hydro-formed front frame delivers excellent rigidity while keeping the overall weight low, providing a responsive and efficient driving experience.

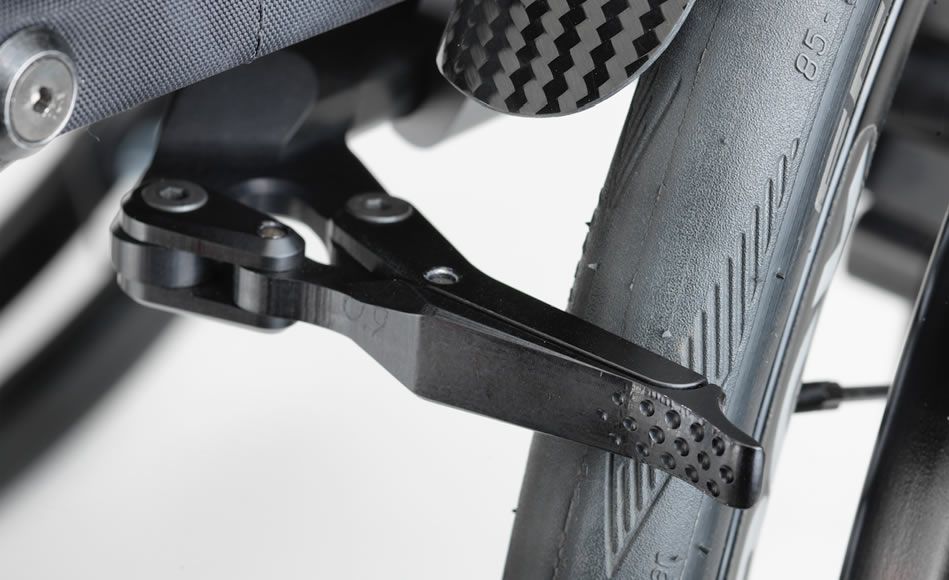

Light Active Brake
The lightweight active brake system offers reliable stopping power without adding unnecessary bulk.

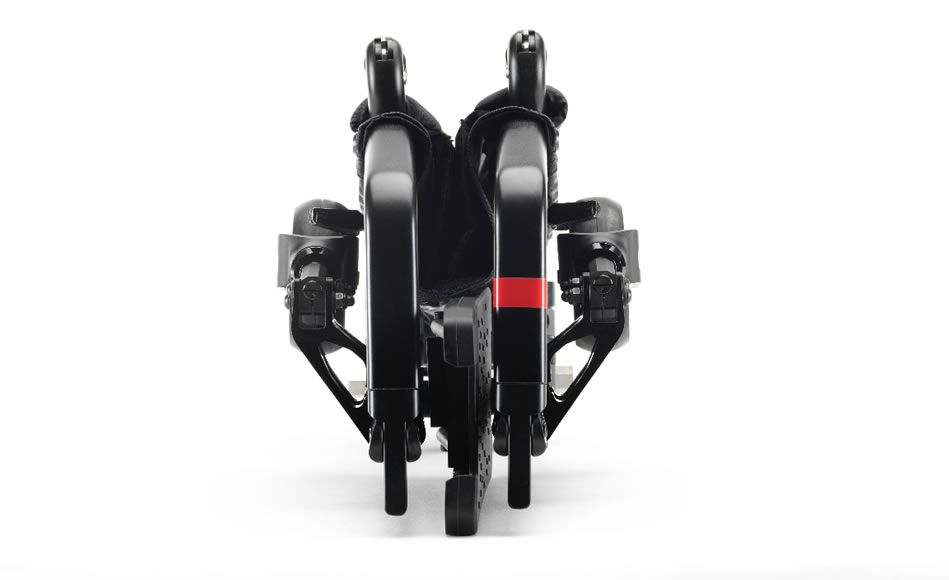

Ultra-Compact Folding
The Champion folds down to an extremely compact size — comparable to a backpack — making it easy to transport in cars, public transport and overhead storage.
Carbolife Handrims
Ergonomic Carbolife handrims provide low-effort grip, improved control and better wrist stability during propulsion.
Adjustable Centre of Gravity
The unique folding unit allows seamless adjustment of centre of gravity and seat height, ensuring the chair can be fine-tuned to suit the user’s needs and driving style.
Technical Features & Measurements
| Specification | Details |
|---|---|
| Seat width | 360–480 mm (20 mm increments) |
| Seat depth | 340–480 mm (20 mm increments) |
| Knee-to-heel length | 320–500 mm (stepless adjustable) |
| Backrest height | 300–465 mm (15 mm increments) |
| Backrest angle | 76° / 80.5° / 85° / 89.5° / 94° |
| Seat height (front) | 450–540 mm |
| Seat height (rear) | 390–490 mm |
| Frame angle | 75° or 90° (straight or tapered) |
| Centre of gravity positions | 9 positions |
| Camber options | 0°, 1°, 3° |
| Total length | 75° approx. 930 mm; 90° approx. 830 mm |
| Total width | Seat width + 160–240 mm |
| Total width (folded) | Approx. 280–340 mm |
| Total weight (unloaded) | Approx. 9.2 kg |
| Transport weight | Approx. 6.7 kg |
| Maximum user weight | 120 kg |
| Folding system | Hybrid folding frame (SK option makes super compact) |



Who Is the Küschall Champion For?
The Küschall Champion is designed for active wheelchair users who want the performance of a rigid frame with the convenience of a folding chair. It’s ideal for people who travel frequently, need a compact chair for transport, or want a lightweight option that doesn’t compromise on responsiveness or strength.
Whether you’re commuting, exploring new places or staying active day to day, the Champion adapts to your lifestyle with ease.
