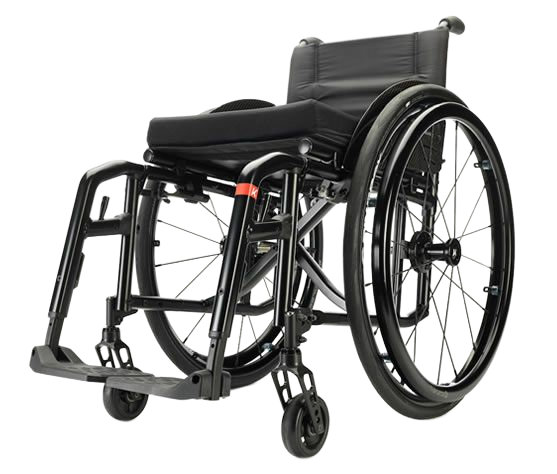

The Classic Cross Folding Wheelchair
The Küschall Compact sets the benchmark for reliability, premium quality and everyday functionality. Designed for users who want flexibility without compromise, it offers outstanding versatility and customisation to suit your lifestyle, mobility needs and personal preferences.
Whether you’re after an active everyday wheelchair or a highly adaptable solution for changing environments, the Compact delivers dependable performance with a refined, modern design.
This classic cross-folding wheelchair folds smoothly and efficiently, making it easy to transport, store and manoeuvre in everyday life. Its lightweight yet robust frame provides a comfortable, responsive driving experience that balances agility with long-term durability.
Perfect for users who need a practical, portable chair without sacrificing strength or performance.
Key Features & Benefits
Redesigned for Lighter Performance
The Compact features a completely redesigned front frame and foot hanger system, reducing overall weight by up to 500 grams while maintaining strength and stability.
Flexible Leg Rest Options
Choose swing-away leg rests for easier transfers and transport, or a fixed front frame at 70° or 80° for greater rigidity and performance.

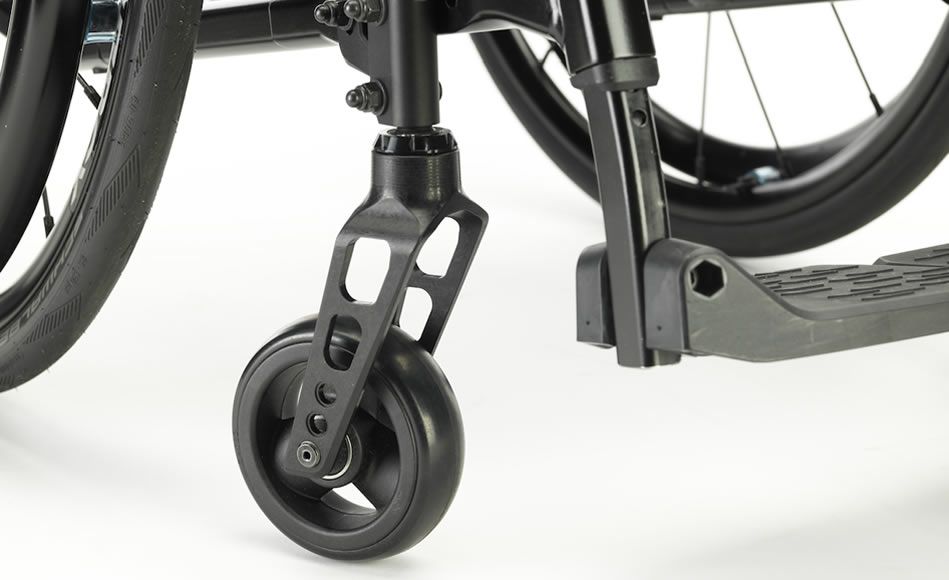

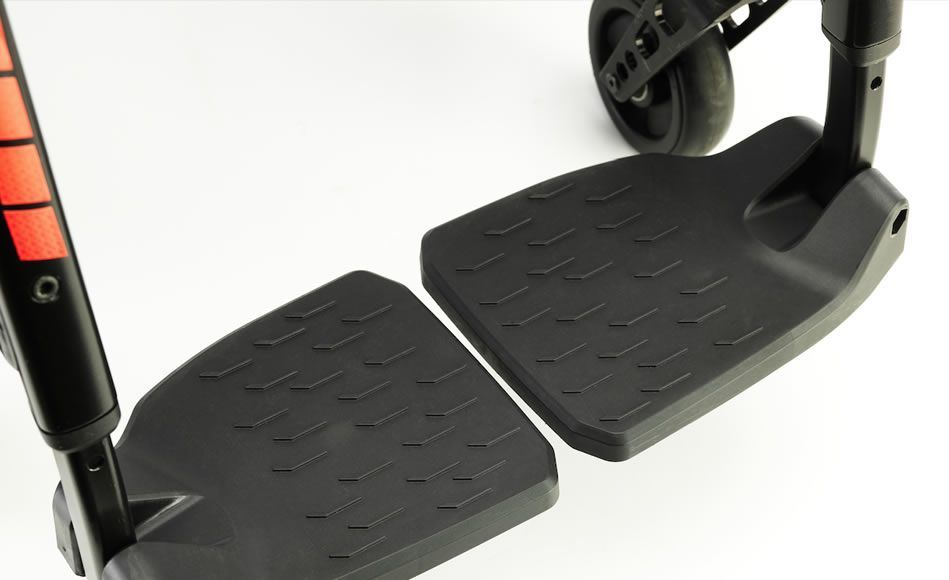

Secure, Modern Footplate Design
The new anti-slip footplate range fits all seat widths and complements Küschall’s clean, contemporary design language while improving safety and comfort.
Simple One-Finger Locking
An easy one-finger locking system makes folding and unfolding the chair quick, smooth and user-friendly.
Built for Higher Weight Capacity
The reinforced cross-brace design provides additional strength and stability for users with higher weight requirements, without adding unnecessary bulk.
Clean Design with Integrated Bearings
A streamlined frame with integrated bearings improves rolling efficiency, reduces maintenance needs and delivers a sleek, modern finish.
Technical Features & Measurements
| Specification | Details |
|---|---|
| Seat width | 280–500 mm (20 mm increments) |
| Seat depth | 320–500 mm (20 mm increments) |
| Knee-to-heel length | 200–510 mm (10 mm increments) |
| Backrest height | 300–510 mm (15 mm increments) |
| Backrest angle | 82° / 86° / 90° / 94° / 98° / 102° |
| Frame angle | 70° or 80° (straight or tapered) |
| Seat height (front) | 370–530 mm (10 mm increments) |
| Seat height (rear) | 360–500 mm (10 mm increments) |
| Total width | Seat width + 160 mm |
| Total width (folded) | Approx. 290 mm |
| Total length (70° frame) | Approx. 870–1220 mm |
| Total length (80° frame) | Approx. 850–1200 mm |
| Camber | 0° or 3° |
| Total weight (unloaded – swing away) | Approx. 10.5 kg |
| Total weight (unloaded – fixed frame) | Approx. 9.6 kg |
| Transport weight (swing away) | Approx. 7.8 kg |
| Transport weight (fixed frame) | Approx. 6.7 kg |
| Maximum user weight | 130 kg |



Frame, Wheels & Customisation
The Küschall Compact is available with a wide range of custom frame sizes, seat widths, seat depths and configurations, allowing it to be tailored precisely to your body and daily needs.
You can personalise your chair with:
- Multiple frame angles and front frame options
- A choice of leg rest styles
- Wheel and tyre configurations to suit your environment
- Upholstery and colour options
- Functional accessories for comfort and independence
This level of customisation ensures your Compact isn’t just a wheelchair — it’s
your wheelchair.
